Greven Xbox-Hq Genius Xbox Version: Xbox V1.6 Modded: Xecuter 3 CE
Joined: Jan 19, 2006 Posts: 2755 Location: Calgary, Alberta, Canada
Posted: Sat Feb 04, 2006 1:46 pm Post subject: Adding Component YPbPr outputs to an xbox
Has anyone added component outputs directly into the xbox case? I recently added a digital coax and s-video output, but I would love to hook up the spare set of compent cables that I have without paying for the HD pack. I could probably figure out which pins to connect, but I can't seem to find a pin guide for the video adapter.
Any help would be great, thanks.
SUPERMAN08012 V.I.P. Lifetime Xbox Version: 1.6 PORTABLE Modded: XENIUM
Joined: May 08, 2004 Posts: 234 Location: NJ, USA
Posted: Sat Feb 04, 2006 2:39 pm Post subject:

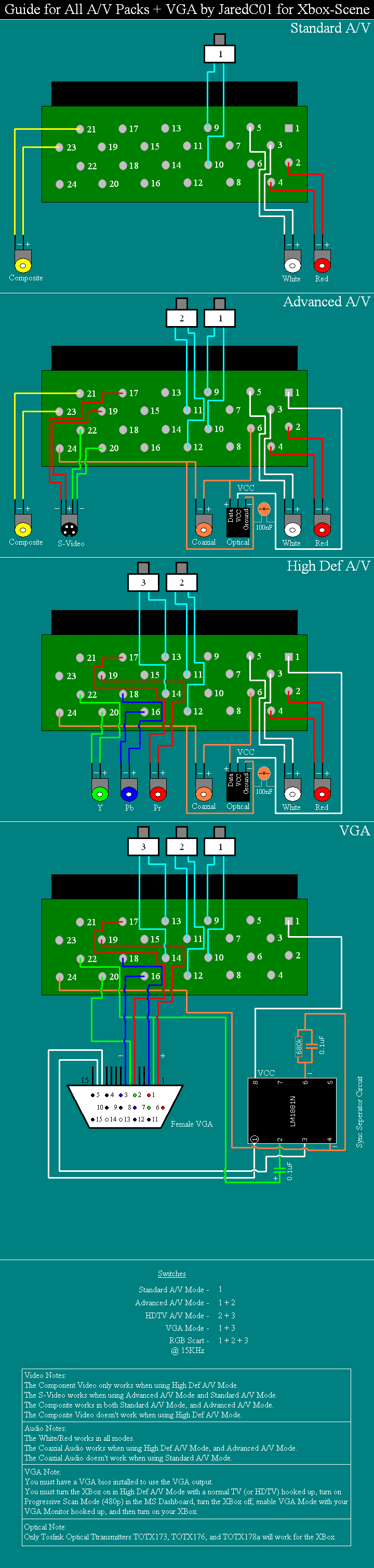

Enjoy
Description:
Filesize:
79.56 KB
Viewed:
118 Time(s)
_________________ XENIUM ICE 300GIG CUSTOM DVD
WORLDS ONLY PORTABLE XBOX "XPOD"
Greven Xbox-Hq Genius Xbox Version: Xbox V1.6 Modded: Xecuter 3 CE
Joined: Jan 19, 2006 Posts: 2755 Location: Calgary, Alberta, Canada
Posted: Sat Feb 04, 2006 3:39 pm Post subject:
Wow, thanks.
Are those 1, 2, and 3 literal switches? On/Off? Cause I would assume then from what I'm see that you turn on a combination of them to get the desired "pack", ie. with switches 2 and 3 on, but 1 off, you enable the HD pack functionality?
SUPERMAN08012 V.I.P. Lifetime Xbox Version: 1.6 PORTABLE Modded: XENIUM
Joined: May 08, 2004 Posts: 234 Location: NJ, USA
Posted: Sat Feb 04, 2006 3:48 pm Post subject:
You CAN mount switches and be able to choose between output types. Or, connect the points permanently if you desire the output of choice to be permanent. _________________ XENIUM ICE 300GIG CUSTOM DVD
WORLDS ONLY PORTABLE XBOX "XPOD"
kdx80boy Xbox-HQ Elite Member Xbox Version: Xbox V1.0 Modded: Xenium Ice Pinheader
Greven Xbox-Hq Genius Xbox Version: Xbox V1.6 Modded: Xecuter 3 CE
Joined: Jan 19, 2006 Posts: 2755 Location: Calgary, Alberta, Canada
Posted: Sat Feb 04, 2006 8:40 pm Post subject:
Cause thats 20 bucks versus the items that I already have, plus then I can use my cables, and if I go elsewhere with the xbox I can connect it using the cables already there without disconnecting mine.
Plus its fun to it this way
|
