Posted: Mon Nov 22, 2004 6:07 pm Post subject: xbox controller port problem
Hello, I am a new person to modding and me and my friend installed the Xenium 3 mod chip. Unfouratnely we don't remember how to put the controller ports back together. I think we accedently unplugged them. Could someone please tell me how to put them back together that someone not very talented with xboxes could perform? Thanks in advanced.
TheModGod Xbox-Hq Legendary
Joined: Apr 18, 2004 Posts: 5303 Location: Greensburg PA
Posted: Tue Nov 23, 2004 2:43 am Post subject:
There is not such thing as a Xenium 3...do you mean X3 as in Xecuter 3?

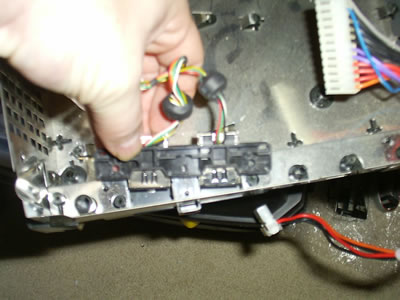

The controller ports just pop into their place and then two screws hold them in. See this picture:

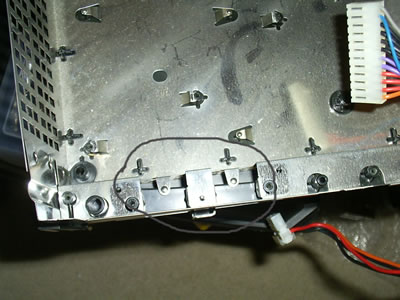

This is just an old case I have laying around with a Power Supply in it, no motherboard. I circled the area where the controller port slides into, see next photo:

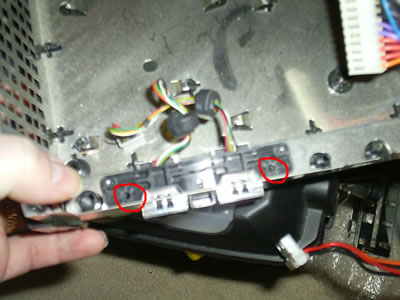

Once the port is in place, insert the two screws. I circled the area the screws go in with red outline.

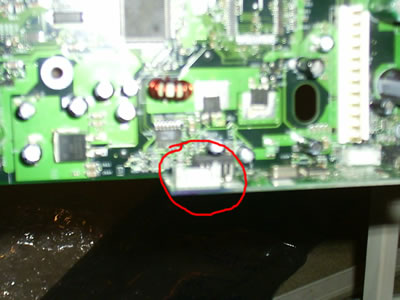

Finally, take the end of the controller port and plug it into the motherboard. I took a shot of a 1.0 motherboard. The port that the controller plugs into is on the daughterboard. If you motherboad doesn't have this, just look near the controller port for the white port that the controller plugs into.
I hope that helped, it's not real hard to do so you should be okay.
realmccloy
---------------------------
http://www.xbox-hq.com http://www.themodgod.com _________________ Good Deals: Death@Hand, funkydopenloven, StaticMind, Slamscaper, PorscheXboxter
Bad Deals: None Yet
Pending Deals: Vanguard
rhannahs Xbox-HQ Newbie
Joined: Nov 06, 2004 Posts: 6 Location: Maryland
Posted: Tue Nov 23, 2004 3:29 am Post subject:
opps your right, I meant the xecuter 3. yeah sorry m mistake the wires that the controller ports plug into got disconnected, sorry for the confusion....
Soarer Xbox-HQ Elite Member Xbox Version: 1.0 Modded: SmartXXv2/4983.06 bios
Joined: Jun 16, 2004 Posts: 307 Location: Annapolis, MD
Posted: Tue Nov 23, 2004 12:30 pm Post subject:
RM:
"WHat a Professional, thats why this site ROCKS!!" Inclluded pics and all Good Job BRO! _________________ SmartXXv2/4983.06 bios
kernel 5101
200G HDD
12v Fan mod(multi LED)
Controller ports/BLUE
EJECT board/UV
10 LED ring cathode/blue
VIP HQ JEWEL
dark blue skin
Logitec wireless controller/headset
MODGOD YOU THE BOMB!!!!!!!!!
TheModGod Xbox-Hq Legendary Xbox Version: 1.0 Modded: SmartXXv2/4983.06 bios
Joined: Apr 18, 2004 Posts: 5303 Location: Greensburg PA
Posted: Tue Nov 23, 2004 5:23 pm Post subject:
Thanks man...when I do that I always have this fear as I am spending the forty minutes or so taking pics, cropping them, uploading to server, then bang it out on the keyboard that once I hit submit I'll see a new post from the member saying, "Nevermind I got it"...LOL
later man
realmccloy
-----------------------
http://www.xbox-hq.com http://www.themodgod.com _________________ Good Deals: Death@Hand, funkydopenloven, StaticMind, Slamscaper, PorscheXboxter
Bad Deals: None Yet
Pending Deals: Vanguard
Soarer Xbox-HQ Elite Member Xbox Version: 1.0 Modded: SmartXXv2/4983.06 bios
Joined: Jun 16, 2004 Posts: 307 Location: Annapolis, MD
Posted: Tue Nov 23, 2004 7:16 pm Post subject:
at least we get the warm fuzzy feeling inside that says ya care!!!! _________________ SmartXXv2/4983.06 bios
kernel 5101
200G HDD
12v Fan mod(multi LED)
Controller ports/BLUE
EJECT board/UV
10 LED ring cathode/blue
VIP HQ JEWEL
dark blue skin
Logitec wireless controller/headset
MODGOD YOU THE BOMB!!!!!!!!!
rhannahs Xbox-HQ Newbie Xbox Version: 1.0 Modded: SmartXXv2/4983.06 bios
Joined: Nov 06, 2004 Posts: 6 Location: Maryland
Posted: Tue Nov 23, 2004 8:20 pm Post subject:
alright yeah i know im fucking retarded and i didnt make it clear... sorry... any help with how to plug the wires back together or what? BTW... i have a version 1.0 xbox, meaning the daughter board is in it, thats where it got unplugged, i think i just need to plug them back in but i'm not sure...
TheModGod Xbox-Hq Legendary Xbox Version: 1.0 Modded: SmartXXv2/4983.06 bios
Joined: Apr 18, 2004 Posts: 5303 Location: Greensburg PA
Posted: Wed Nov 24, 2004 6:32 pm Post subject:
Dude, nobody is saying you are retarded...just look at the picture of the motherboard...and where the plug is...I said to just plug it in...
I don't know how much more help I can give you to plug something in other than drive to your house and do it for you.
The picture I took has the daughterboard. To the left of the daughterboard you will see a white port. Just plug the white connector at the end of the wiring harness that is on the controller port into the port on the daughterboard. They have little notches so you can't plug it in wrong. If it doesn't fit right, turn it around the other way and it should go in. I figured you had it already.
