 USB to Controller View previous topic :: View next topic




TheRealHypnotiX
Moderator
Moderator


Joined: Feb 01, 2006
Posts: 2508
Location: Pensacola, FL
Post Posted: Wed Aug 09, 2006 9:25 am
Post subject: USB to Controller		 Reply with quote

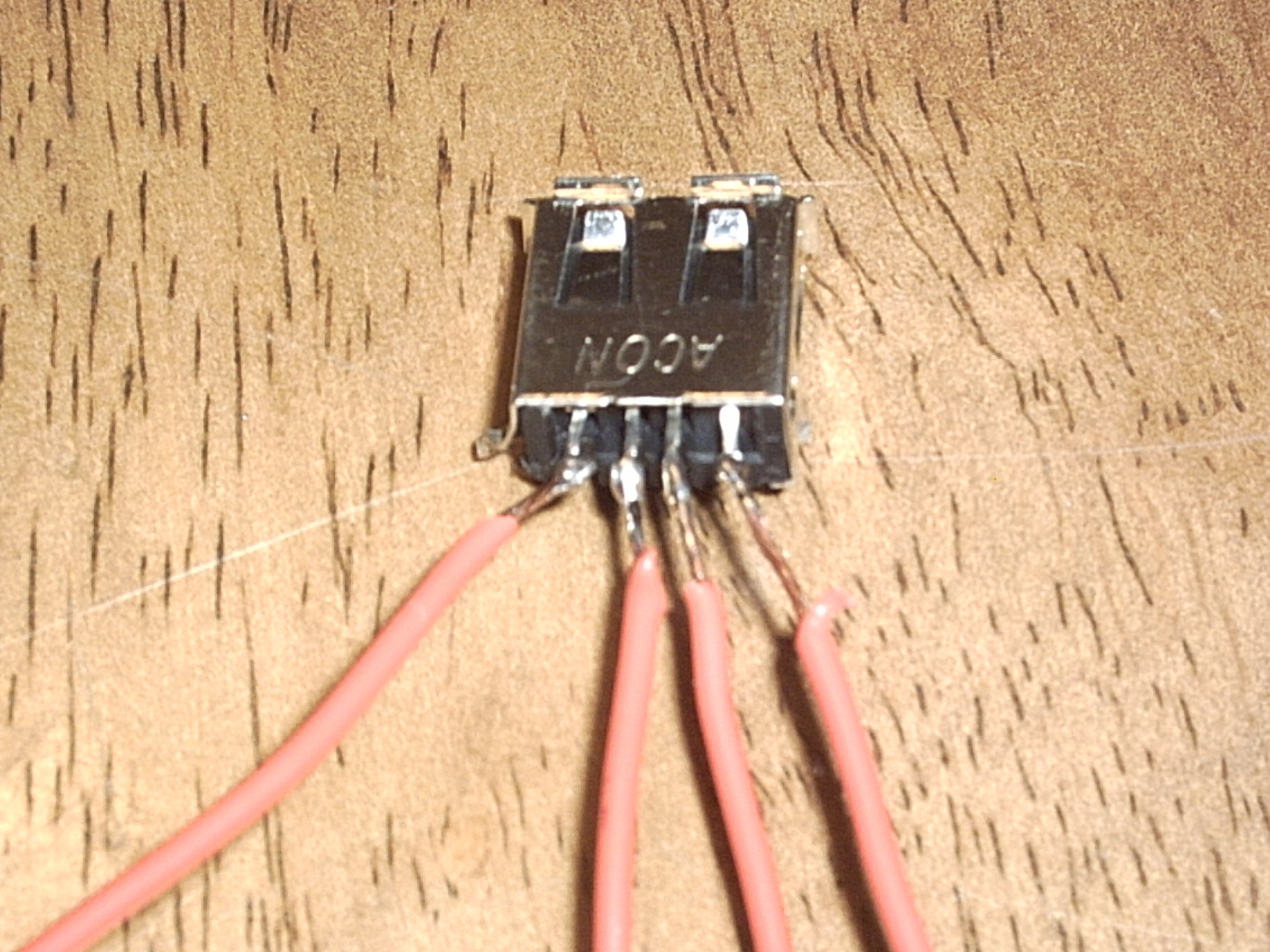

Ok i had to take a female USB off a car i dont need anymore.

It of course didnt have colored wires, so i soldered sum on.

Heres the ? i need to know wat wire on the controller male goes to wat wire on the USB i took a pic and its facing Right side up.....any help would be APPRECIATED!!

 Description:
 Filesize:  1.65 MB
 Viewed:  102 Time(s)


_________________
Hotswap Tutorial|FTP Tutorial|HyperX Flashing Tutorial


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




TheRealHypnotiX
Moderator
Moderator


Joined: Feb 01, 2006
Posts: 2508
Location: Pensacola, FL
Post Posted: Wed Aug 09, 2006 9:53 am
Post subject: 		Reply with quote

ok, i think i got it, but now, how do i know wen the device works, and still just to be sure lemme know wat color goes to wat
_________________
Hotswap Tutorial|FTP Tutorial|HyperX Flashing Tutorial


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




adamskite
Xbox-HQ Enthusiast
Xbox-HQ Enthusiast

Xbox Version: Xbox v1.4
Modded: Xeno FX

Joined: Aug 14, 2006
Posts: 33
Post Posted: Wed Aug 16, 2006 11:02 am
Post subject: 		Reply with quote

I dont know about the wires because i used a usb extension lead+an xbox dance mat to make the adapter.my advice is to just buy a usb extension cable+cut it in half. Also get an old xbox joypad or accessory that plugs into the controller port and cut the wire on that in half. U should see 4 wires in the usb lead and 5 in the xbox one. The yellow one in the xbox lead is useless, cut it off or something. Then ur left with 4 wires in each. Just match up the colours and solder. If only 3 colours match then solder the odd ones out together. When its all done and you want to test it just plug it in, turn on your xbox and wait till it goes to the dashboard. BACK UP THE FILES ON YOUR USB MEMORY DEVICE Then plug in a usb memory device and wait 10 seconds. then go into memory. It should a)recognize it as a memory card/ b) Say it is damaged/ c)Say its not working properly and erase it or d)Nothing happens
A it worked
B it worked but your usb memory device isn't compatable
C it worked
D Try another usb memory device if that doesn't work then it didn't work.
DO NOT USE AN MP3 PLAYER BECAUSE THE XBOX WILL FORMAT IT AND IT WILL NEVER WORK AGAIN!!
