 how can i add rca ports to my xbox View previous topic :: View next topic




j8994
Moderator
Moderator


Joined: Feb 05, 2006
Posts: 1853
Location: Tennessee, USA
Post Posted: Fri Mar 24, 2006 4:26 am
Post subject: how can i add rca ports to my xbox		 Reply with quote

my little brother screwed up my vid port on my xbox, is there a way to add rca ports for vid and sound, if so any tuts, i know how to add a vga port, but i need to add rca cuz, i the pins broke on my spare video port that i was going to use to replace it with
_________________
Please post all PC Questions at PC-HQ.com


View user's profile Send private message




LEE337
Xbox-HQ Freak



Joined: Dec 01, 2005
Posts: 540
Location: Somewhere south of Seattle
Post Posted: Fri Mar 24, 2006 4:30 am
Post subject: 		Reply with quote

There are pinouts available for the A/V connector. I'll see if I can find one for you.

You said that you know how to add a VGA? Have you done it? I'm looking to do that to one of my boxes, can you explain how?

Edit:

Will this work for you?

http://xbox-scene.com/articles/svideo-spdif.php

How about this:

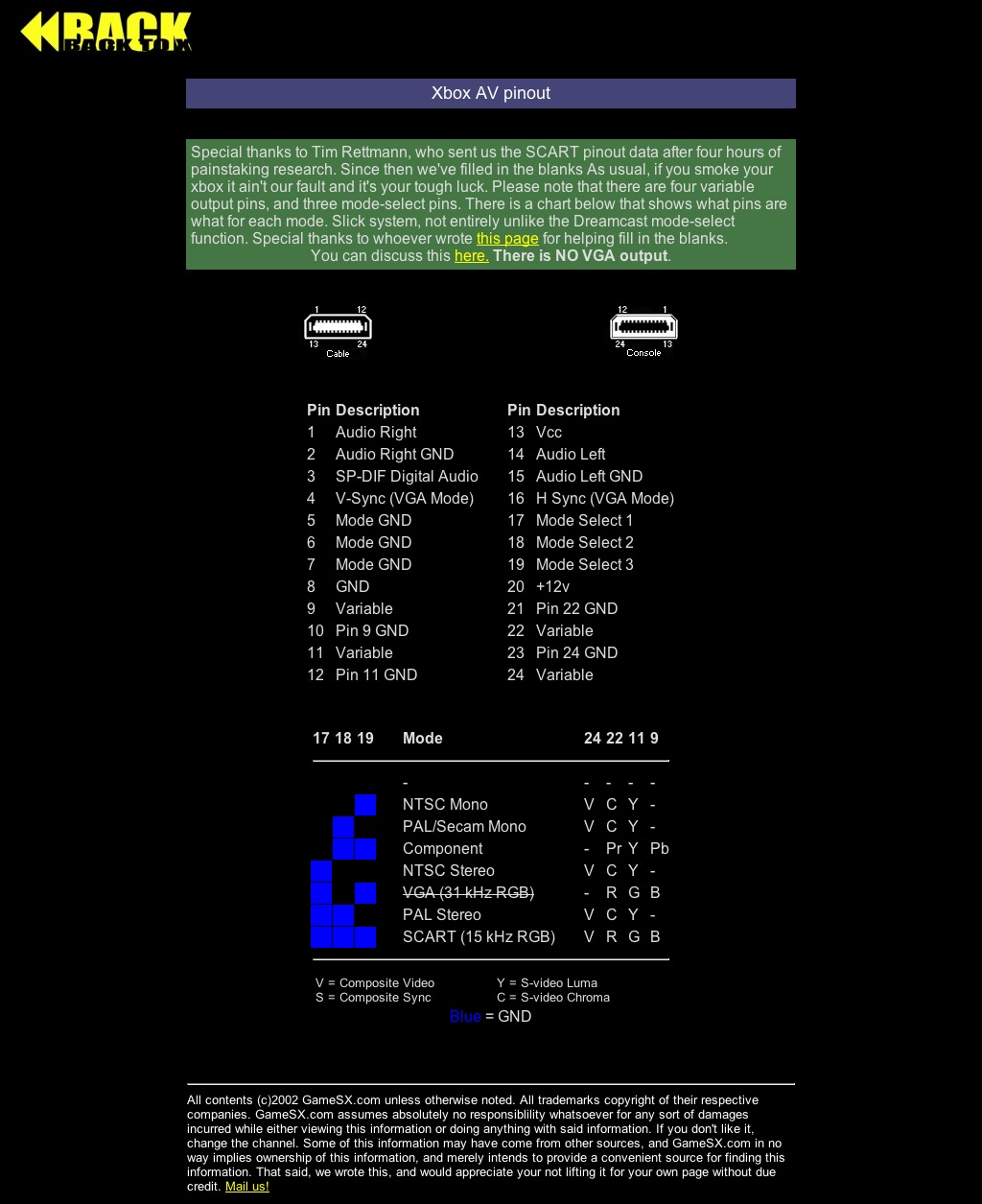

This pic is from:
http://www.gamesx.com/avpinouts/xbox.htm

 Description:
 Filesize:  209.29 KB
 Viewed:  82 Time(s)


_________________
Shocked I think I like fixing Boxes more than using them! Shocked
Naaaah!
-Lee

Last edited by LEE337 on Fri Mar 24, 2006 4:48 am; edited 1 time in total


View user's profile Send private message Yahoo Messenger




j8994
Moderator
Moderator


Joined: Feb 05, 2006
Posts: 1853
Location: Tennessee, USA
Post Posted: Fri Mar 24, 2006 4:43 am
Post subject: 		Reply with quote

it may but its hard to find s video to rca adapter. i really need rca,

but on the vga i have the xbox repair guide, from xboxrepairguide .com if you want it it tells about the vga mod just pm me for the address to the file
_________________
Please post all PC Questions at PC-HQ.com


View user's profile Send private message




LEE337
Xbox-HQ Freak



Joined: Dec 01, 2005
Posts: 540
Location: Somewhere south of Seattle
Post Posted: Fri Mar 24, 2006 4:51 am
Post subject: 		Reply with quote

Sorry, I edited my previous post. Embarassed
_________________
Shocked I think I like fixing Boxes more than using them! Shocked
Naaaah!
-Lee


View user's profile Send private message Yahoo Messenger




j8994
Moderator
Moderator


Joined: Feb 05, 2006
Posts: 1853
Location: Tennessee, USA
Post Posted: Fri Mar 24, 2006 5:01 am
Post subject: 		Reply with quote

well i see the pins for the audio part but what ones should i use for the video,
_________________
Please post all PC Questions at PC-HQ.com


View user's profile Send private message




LEE337
Xbox-HQ Freak



Joined: Dec 01, 2005
Posts: 540
Location: Somewhere south of Seattle
Post Posted: Fri Mar 24, 2006 6:35 pm
Post subject: 		Reply with quote

You need to Decypher the Blue diagram at the bottom.

It looks like you need to connect pin 17 to pin 5, to get mode 1. Which means that pin 24 is composit video and pin 23 is the Gnd for it.

That is just what I see, I could be wrong. Wink
